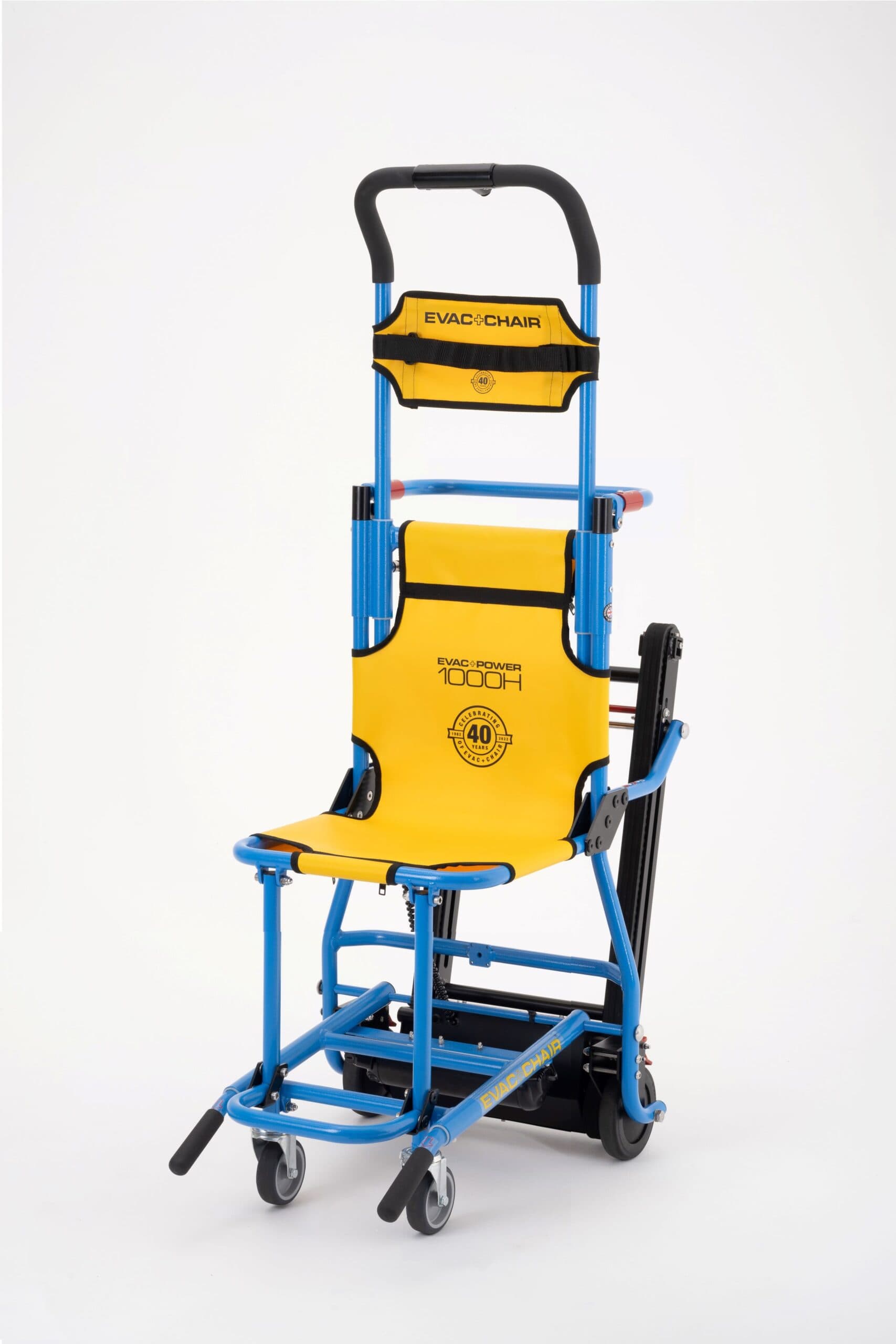

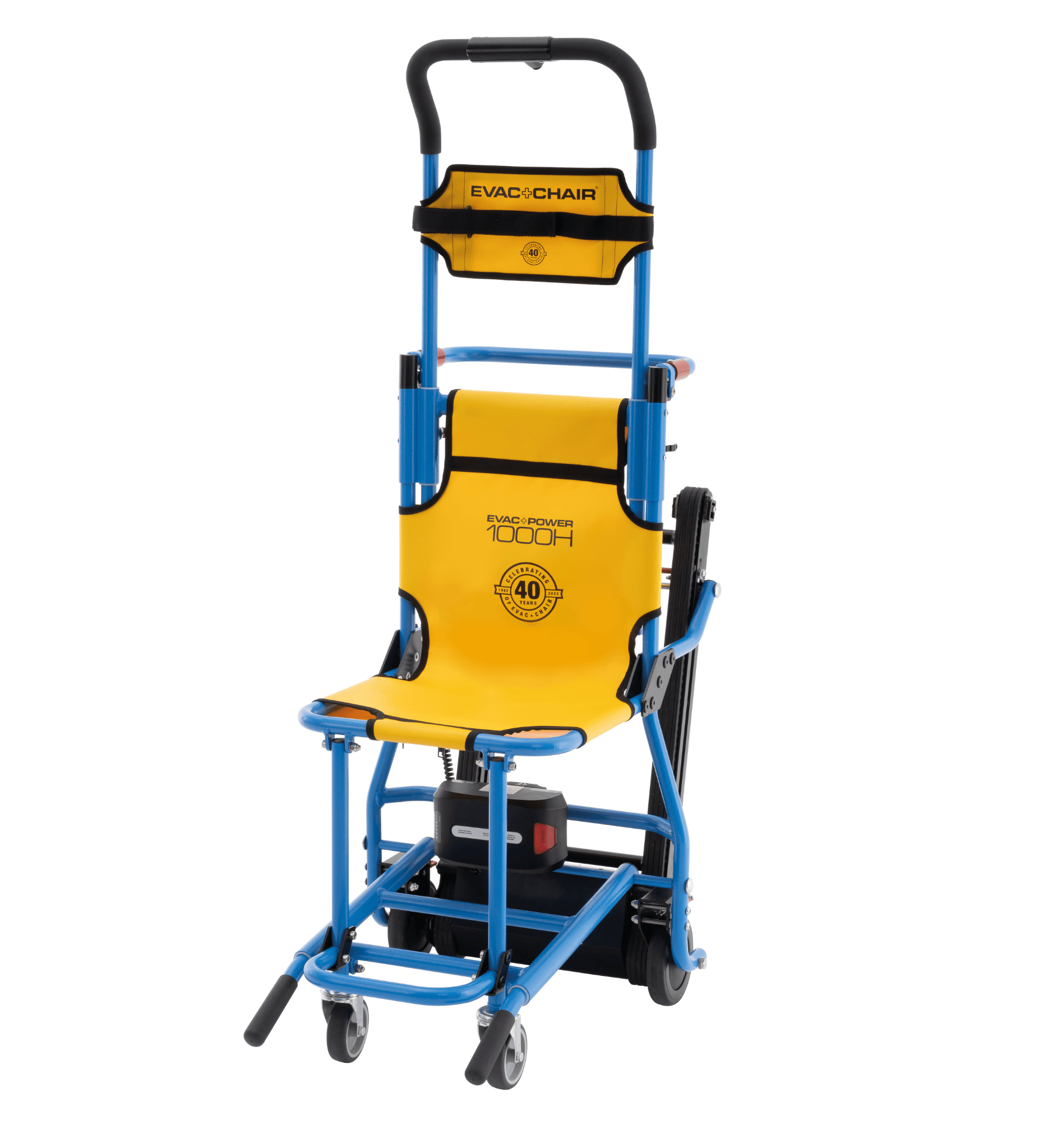

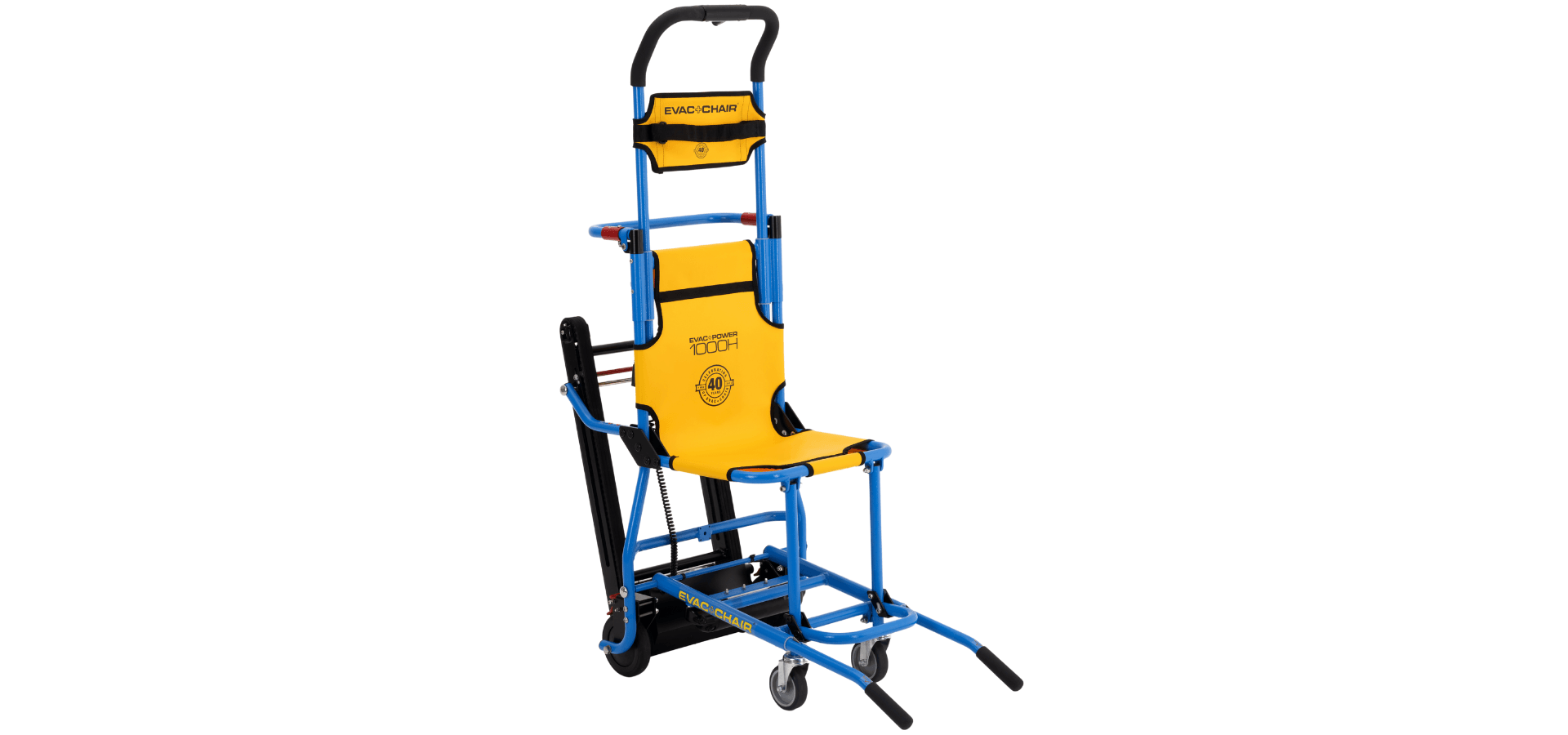

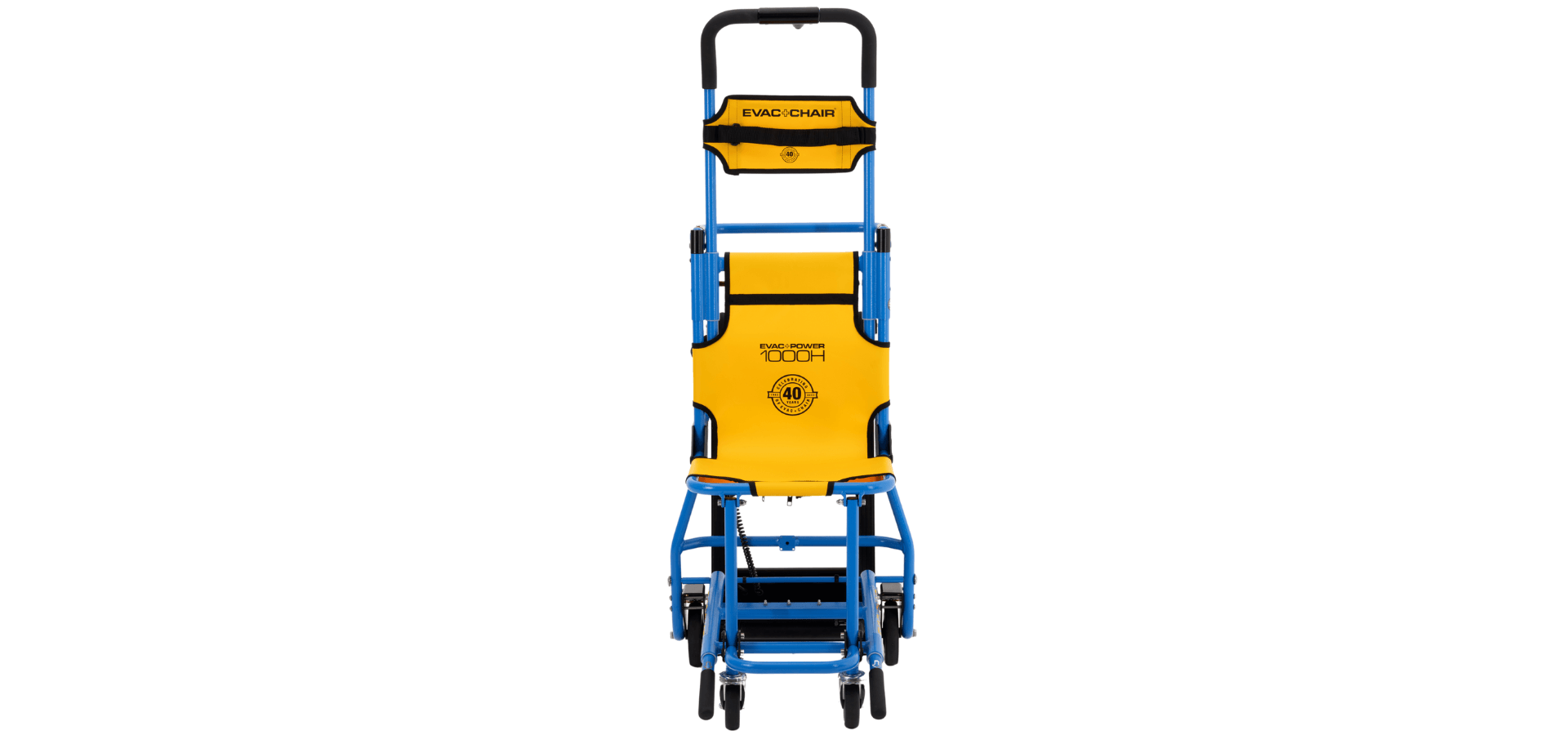

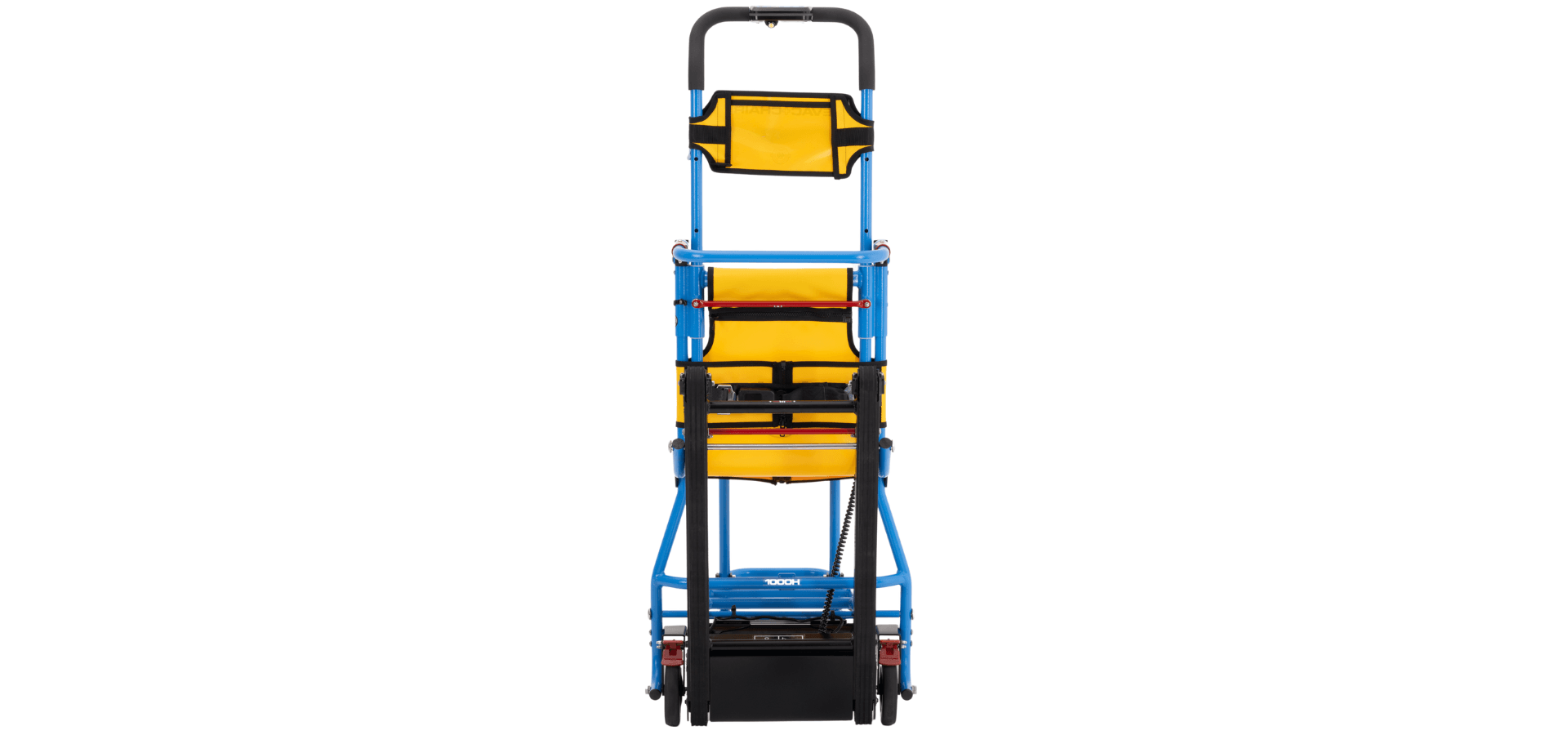

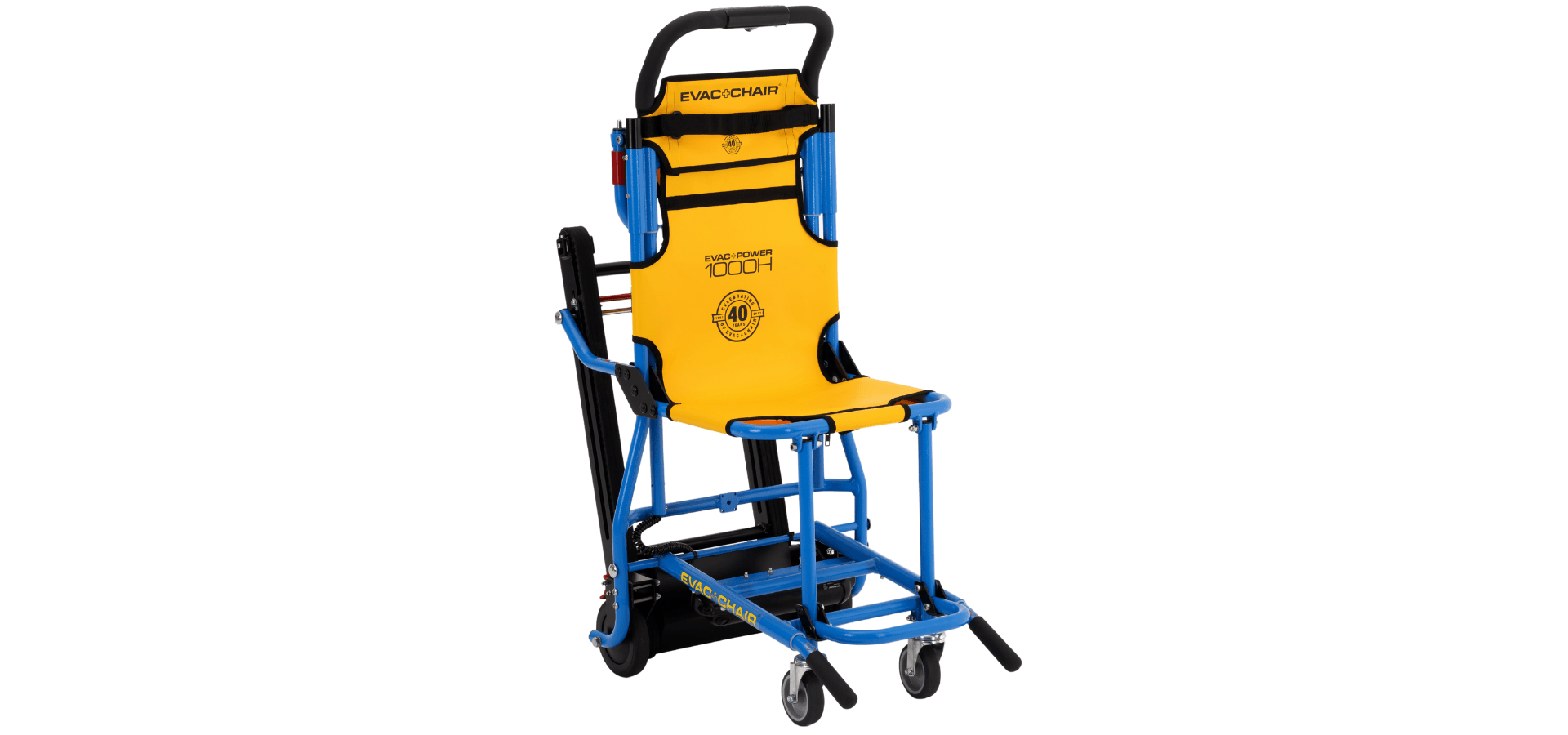

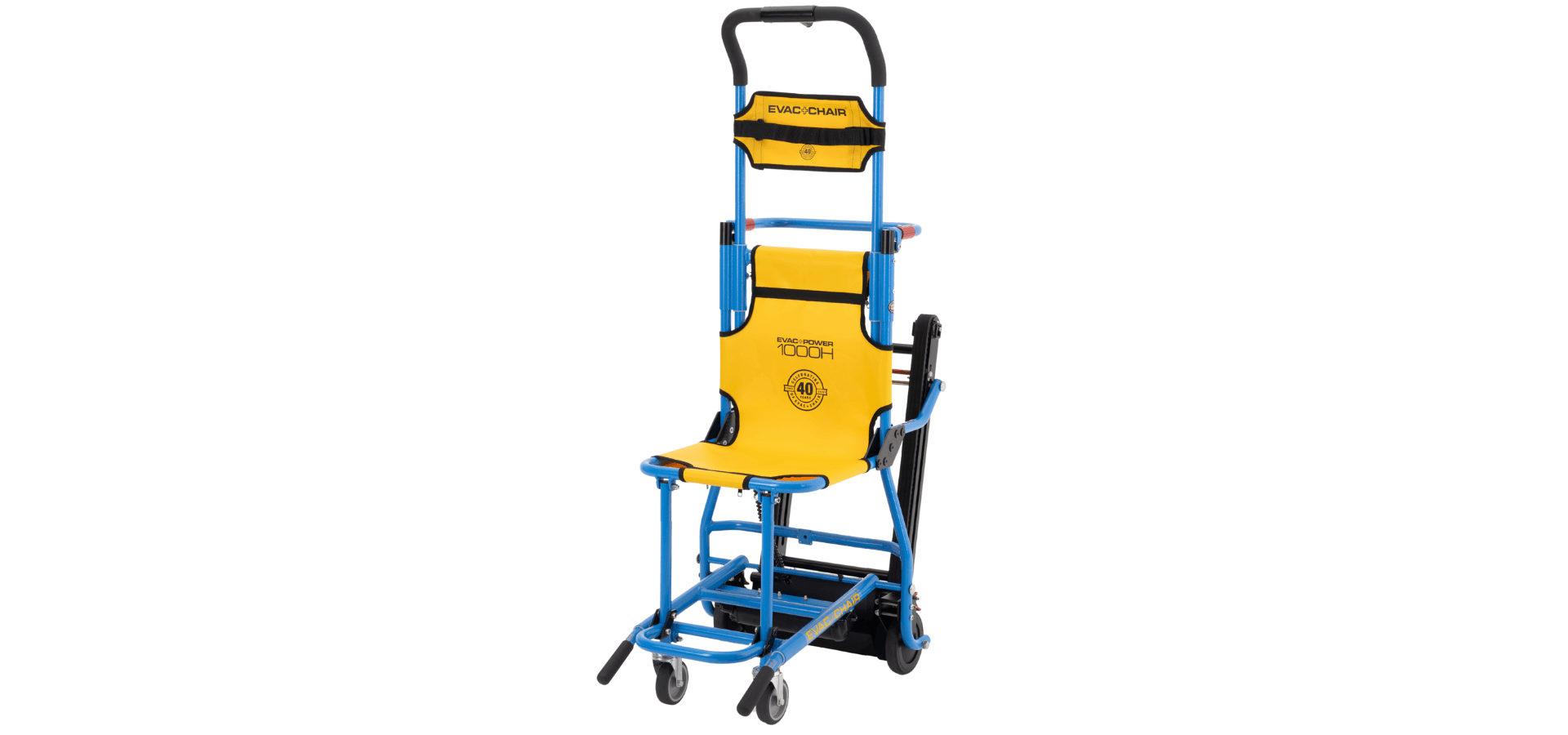

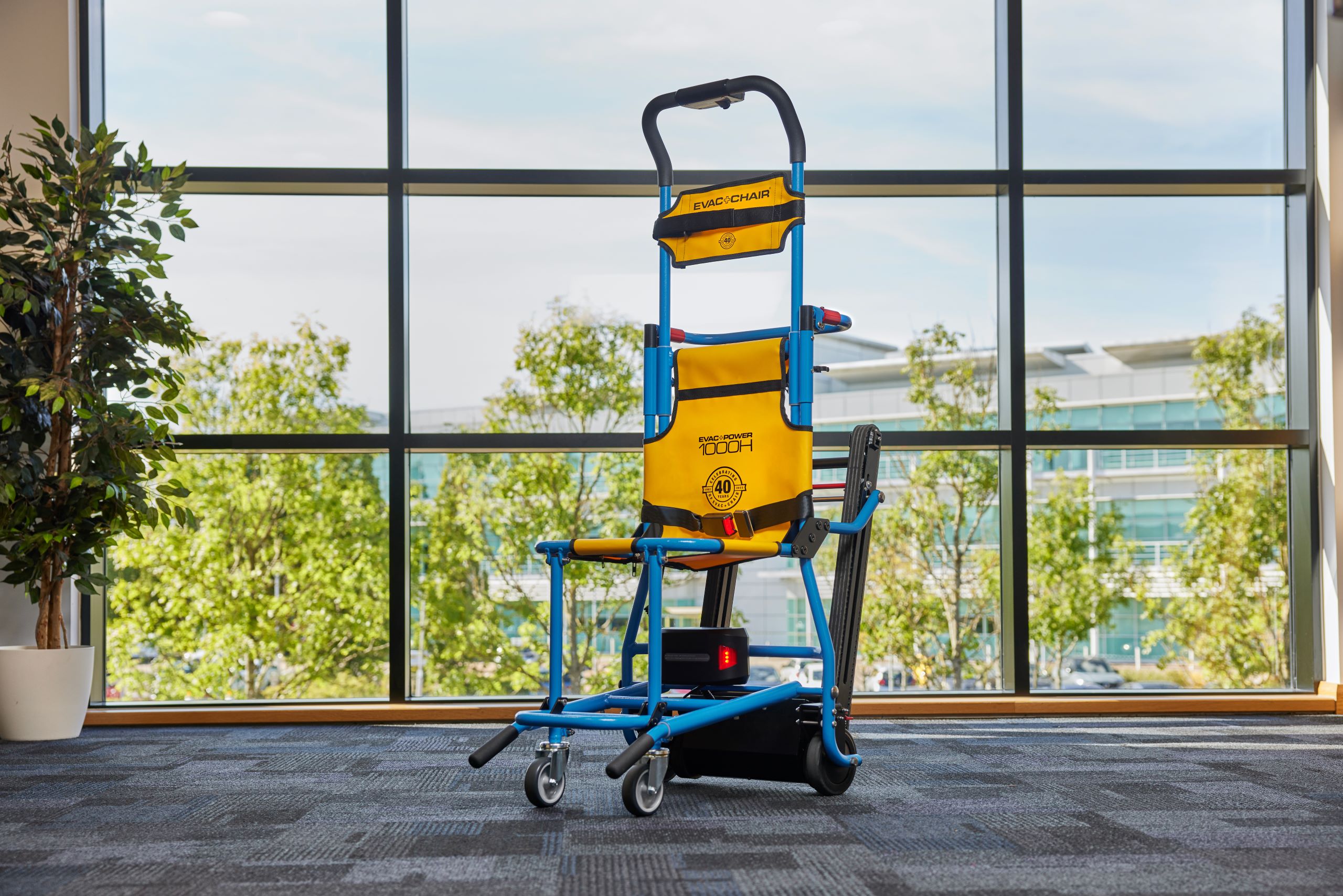

Evac+Power 1000H

Powered Evacuation Chair

Training and Maintenance Included

The Evac+Power 1000H has the highest payload capacity in the world, providing an evacuation solution that is flexible and accommodates passengers up to 270kg. Featuring a 36V lithium-ion battery, the Evac+Power 1000H glides effortlessly during stairway ascent and descent. Its Rapid Deployment System facilities a swift set up, and it’s easy to use, water-resistant control panel enables the operator to control the speed and direction of the evacuation.

Key benefits

Payload capacity of 270kg: offers unmatched flexibility and adaptability.

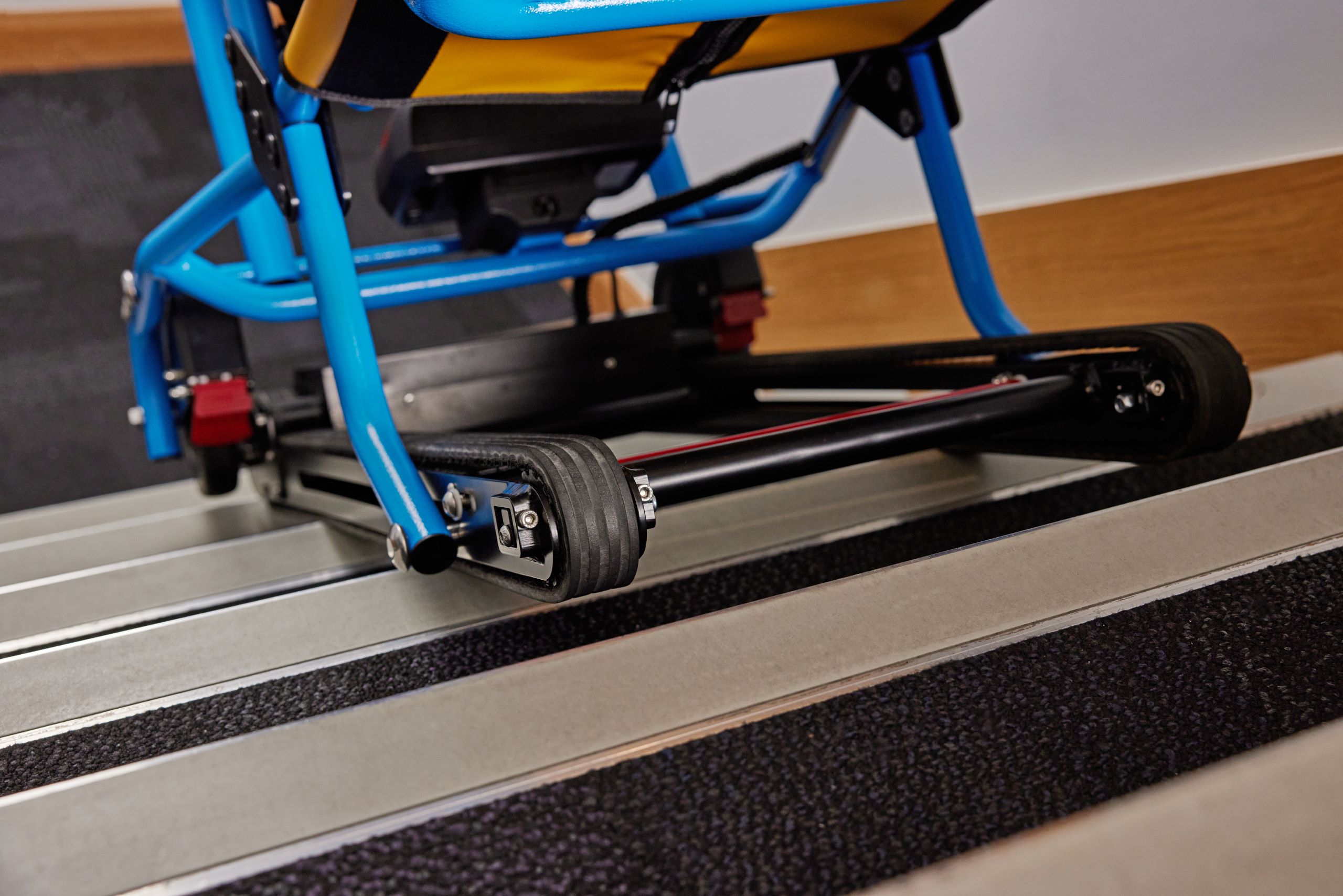

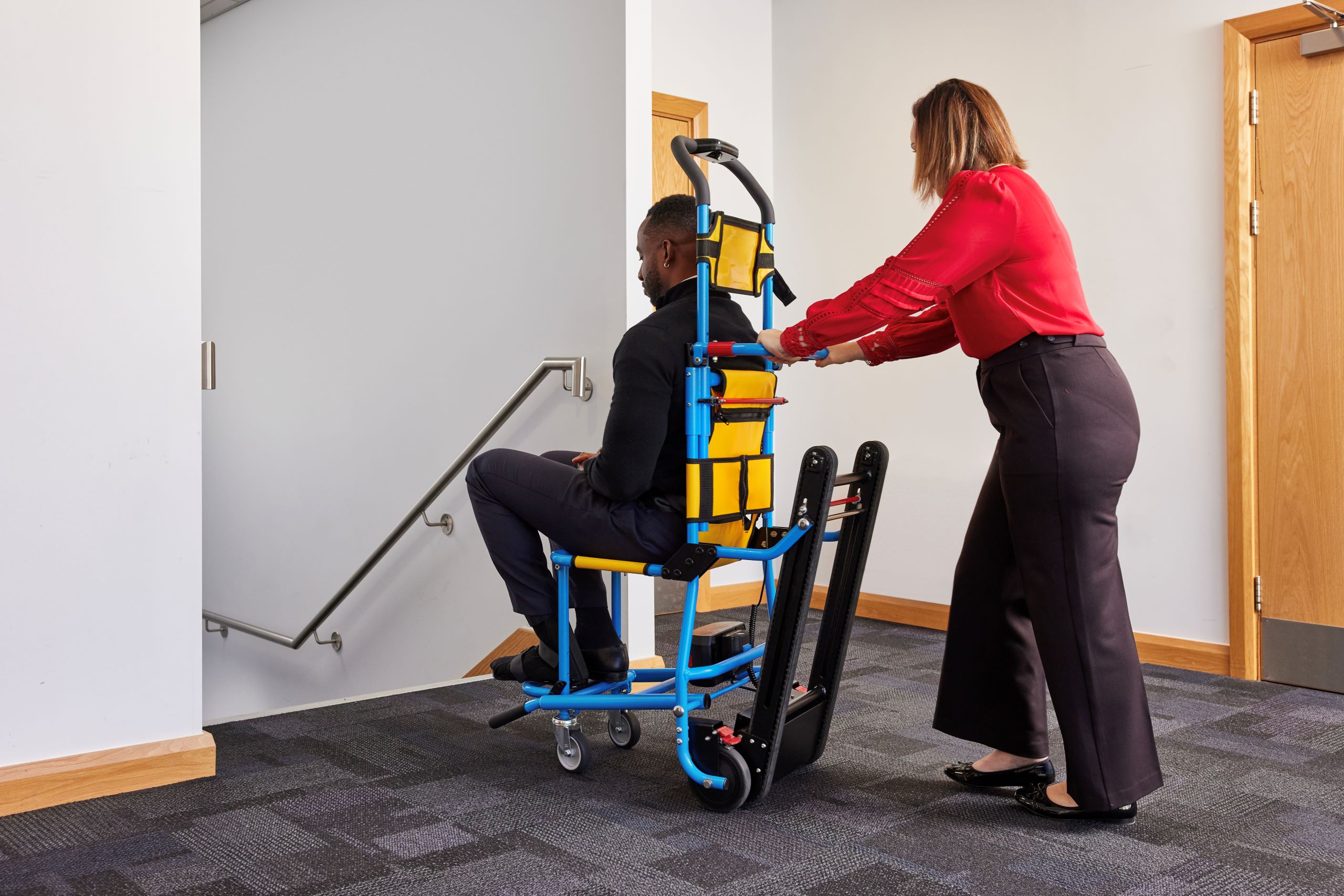

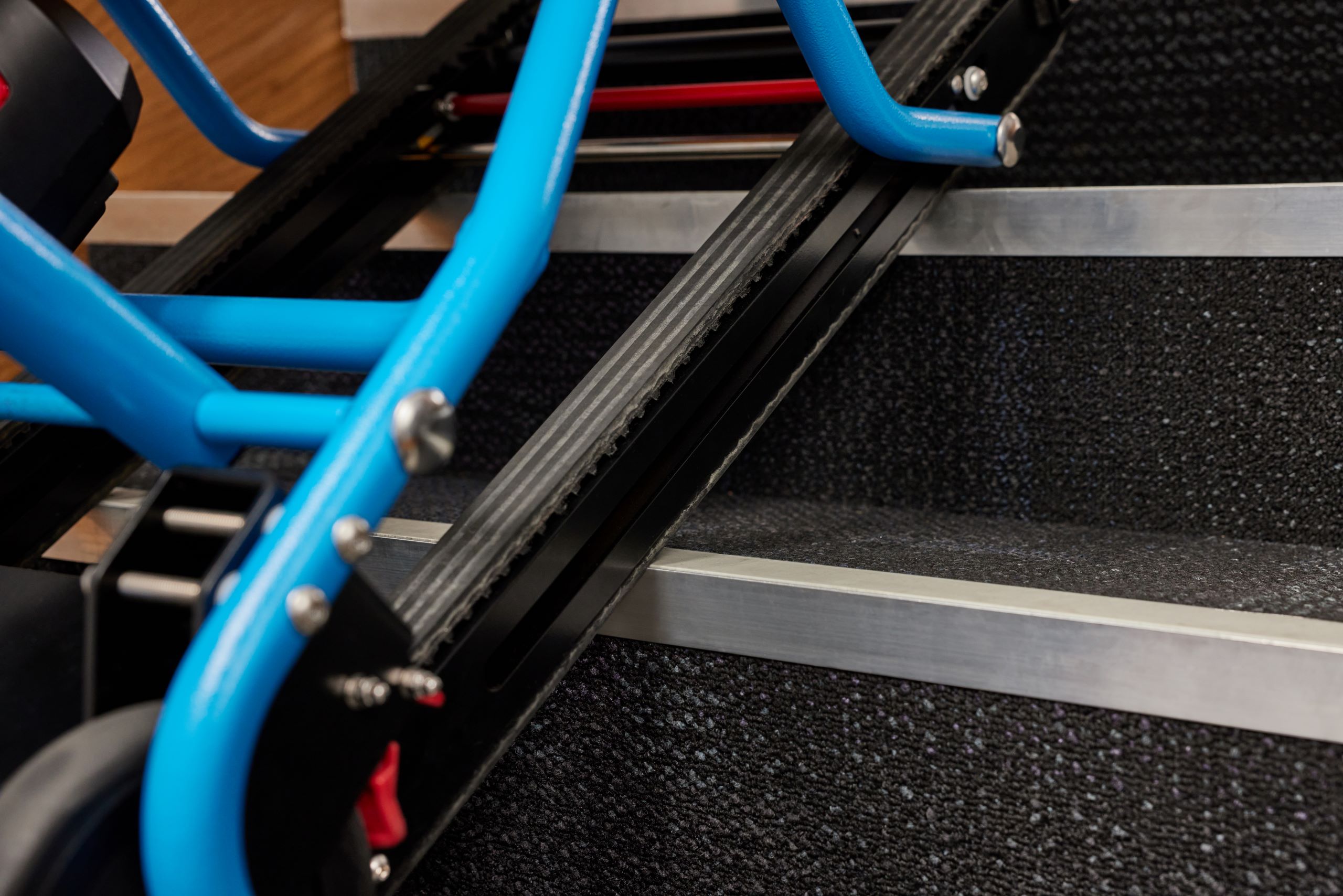

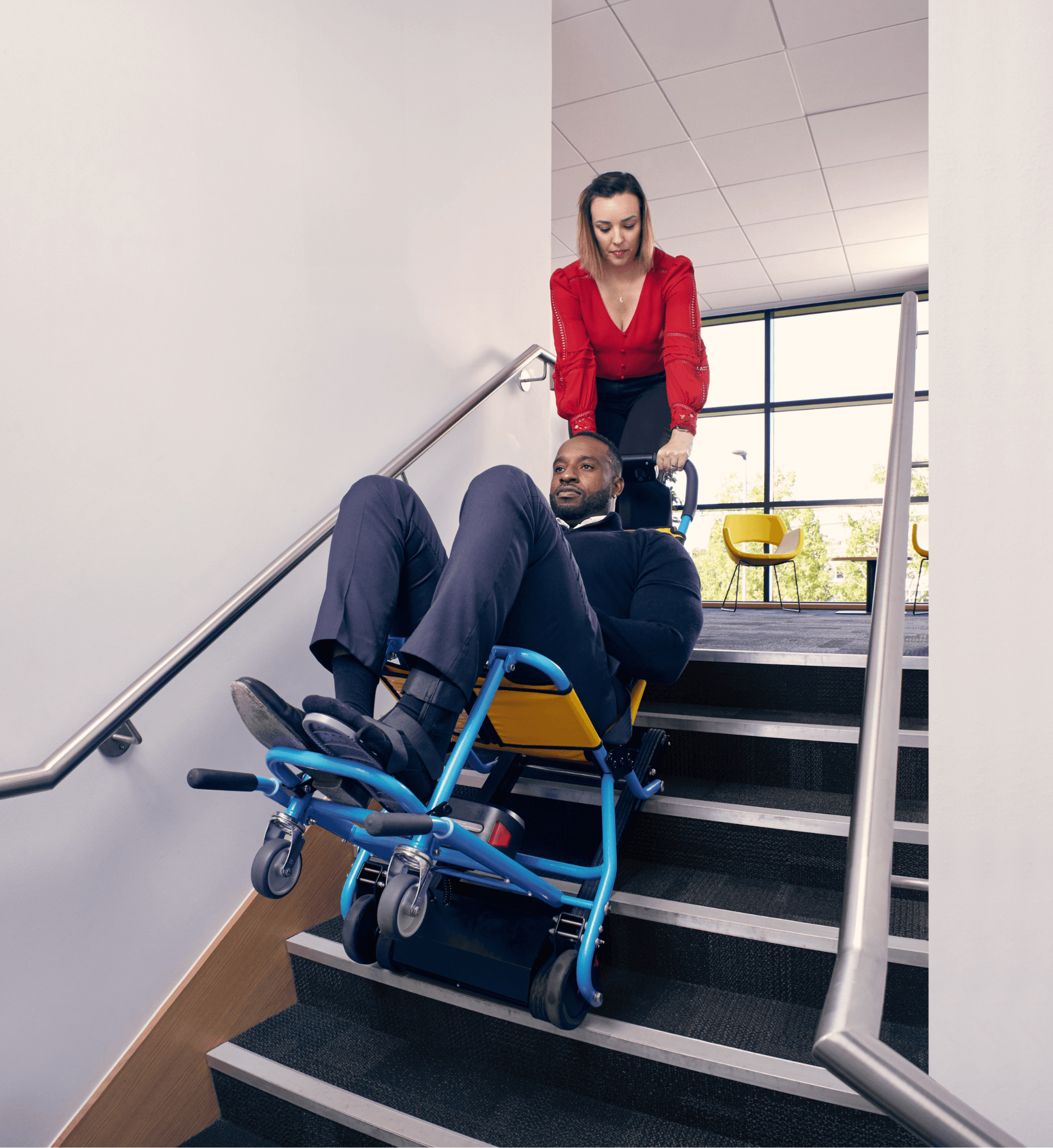

Ascent and descent: provides flexibility allowing passengers to be transferred up or down stairs.
36V lithium ion battery: reduces manual handling and enables the operator to transfer higher payloads.

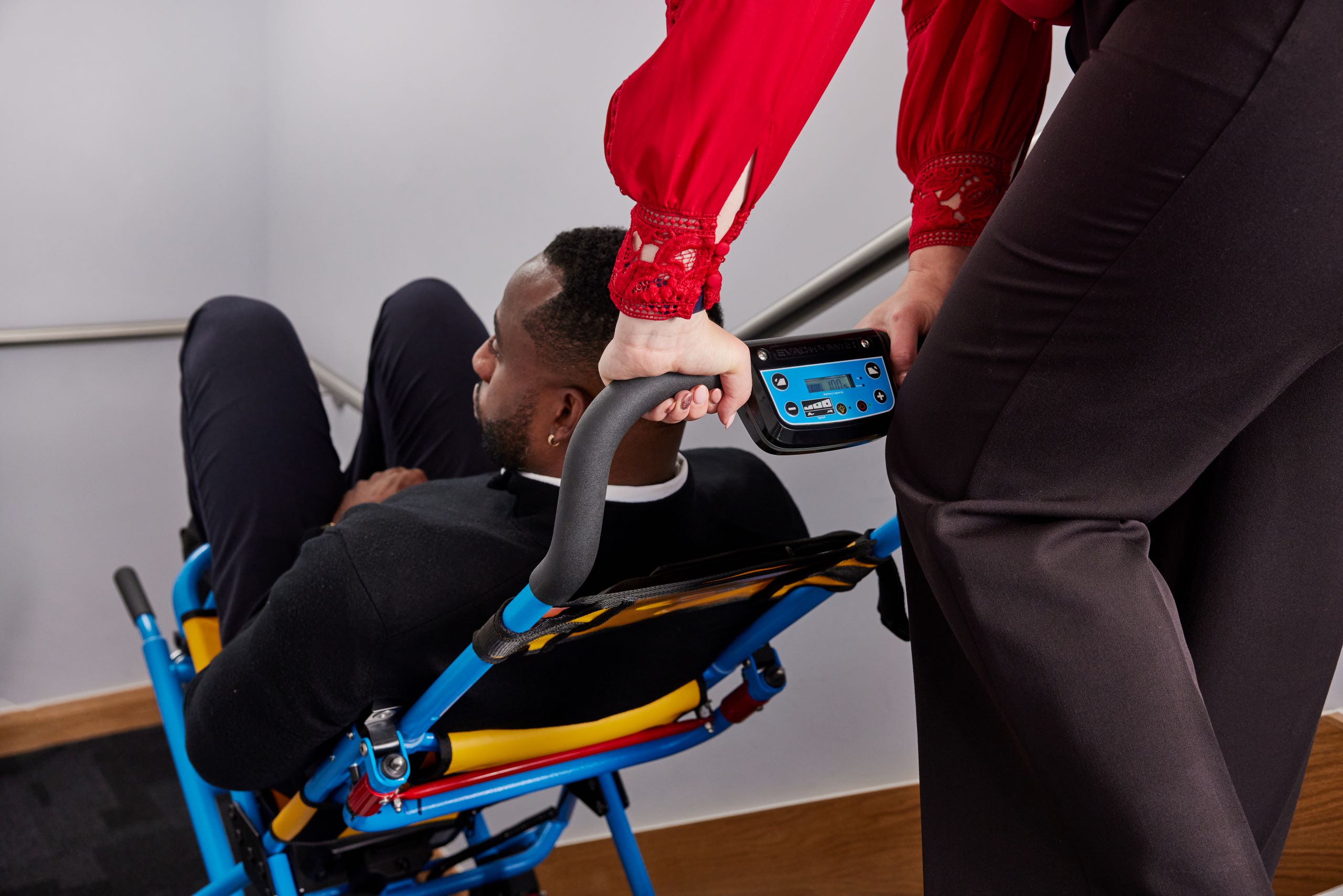

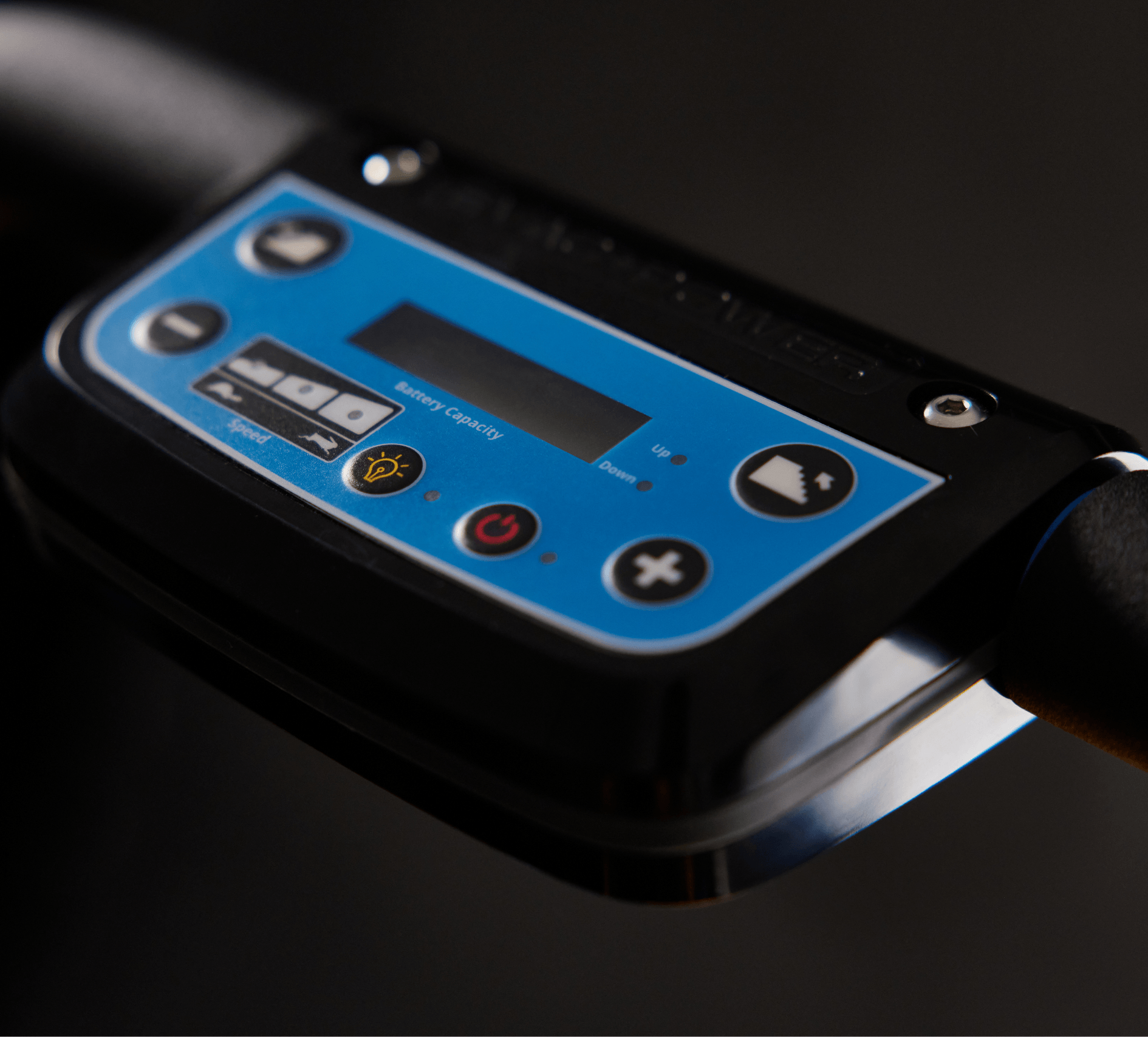

Ergonomic water resistant control panel: for reliable performance in wet conditions, IPX4 certified.

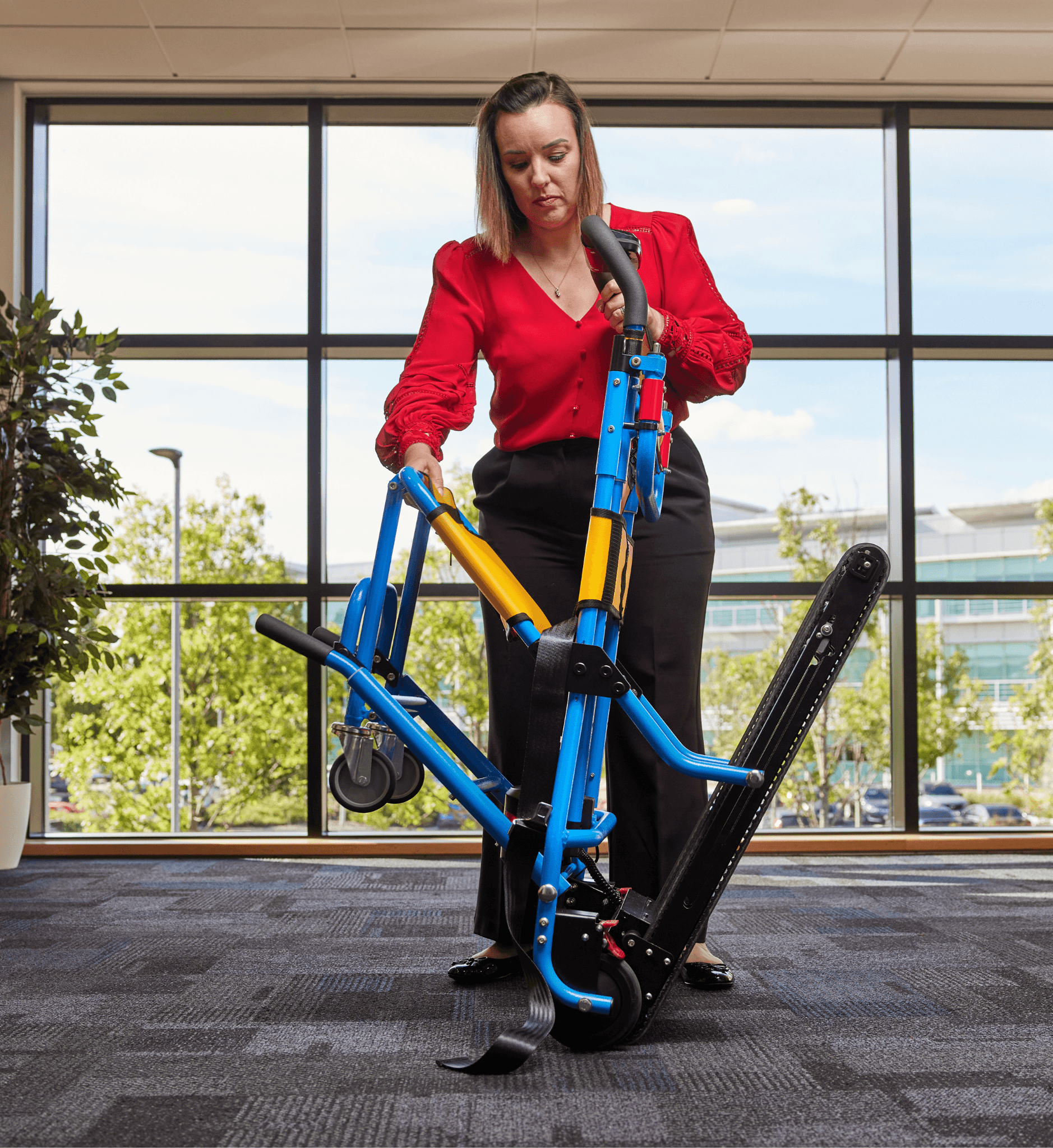

Rapid Deployment System: reduces set up and storage time for greater efficiency.

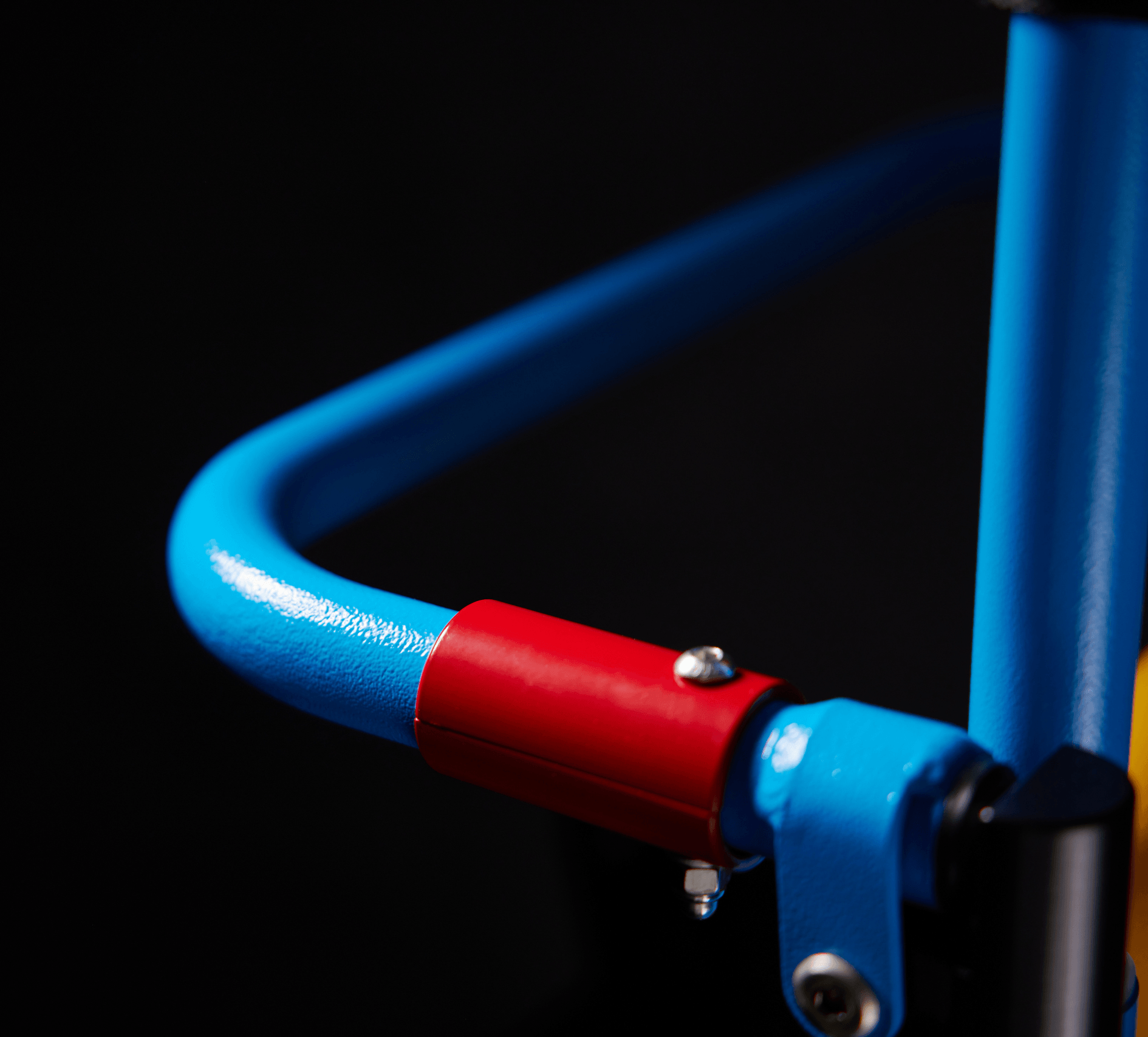

Lightweight framework: designed for ease of manoeuvrability.
Quality assured: ISO 9001 and ISO 13485 accredited.

Technical specifications

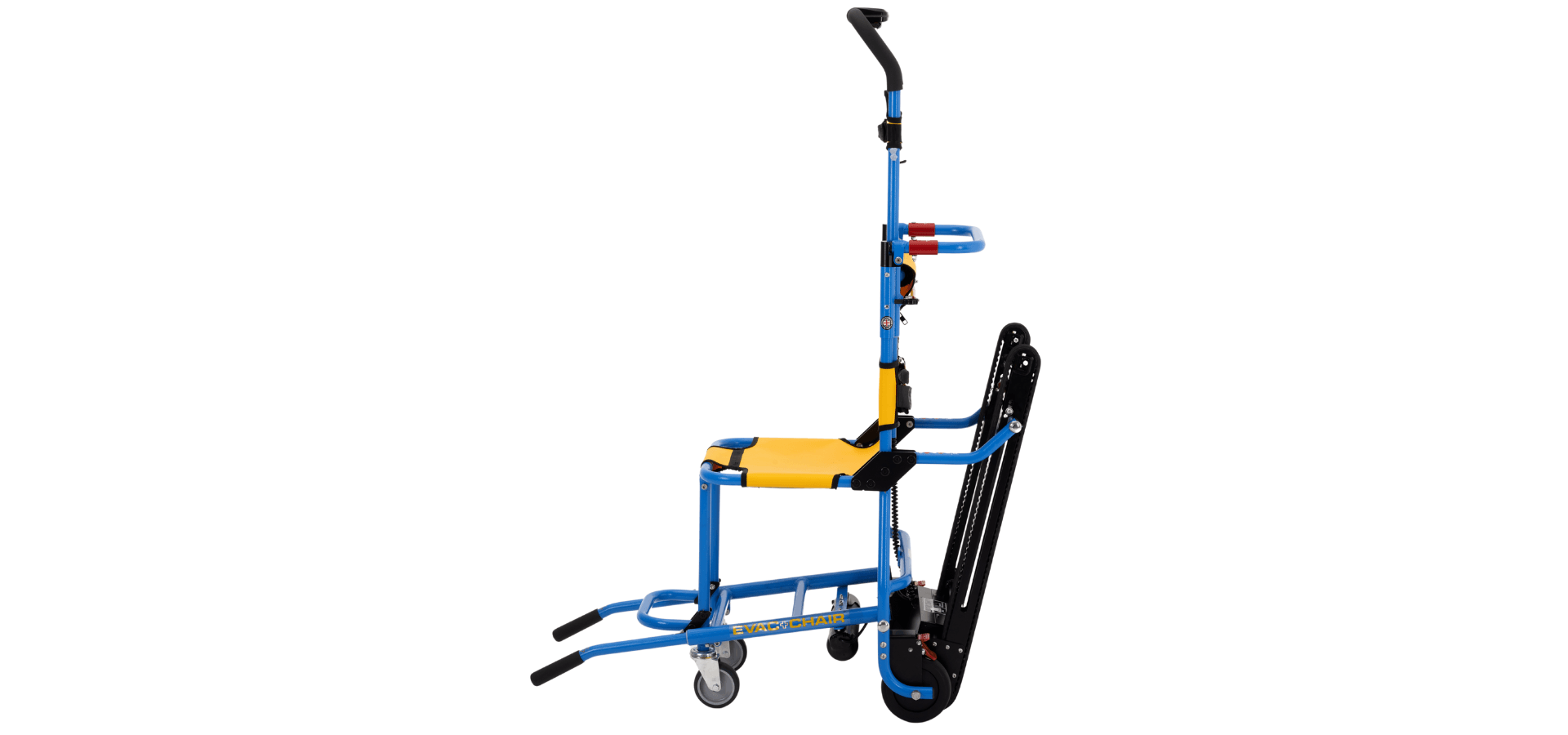

Height: 1220mm folded or 1670mm unfolded
Width: 580mm both folded and unfolded
Depth: 300mm folded and 1110mm unfolded
Weight: 26kg with battery or 24.5kg without battery
Payload Capacity: 270 Kg
Suitable for stair angle: 28° – 40° stair angle

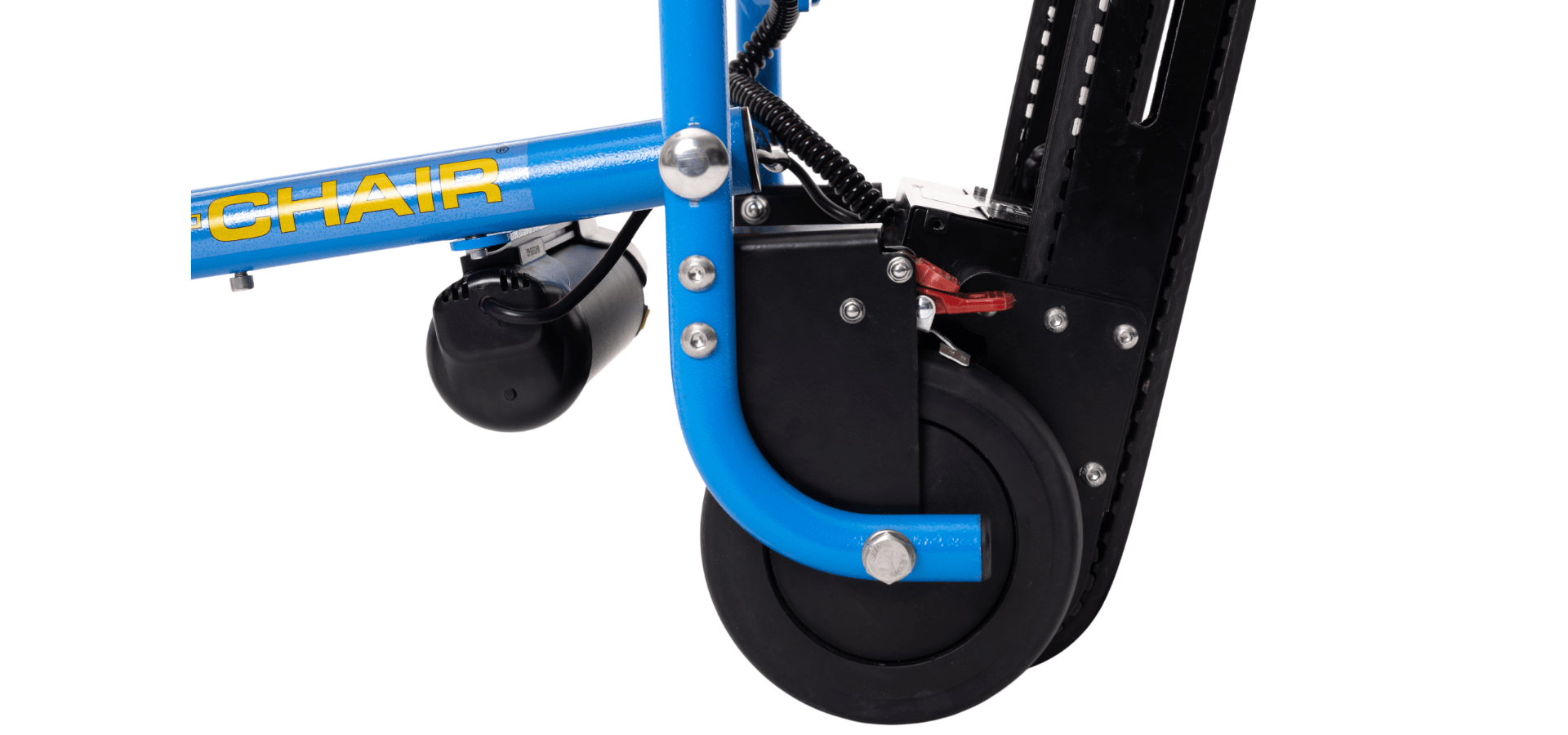

Motor: 36V lithium-ion battery with 300W of power
Average speed: 0.2m/s when ascending and 0.3m/s when descending
Battery life: lasts 90 minutes which is equivalent to 150 flights of stairs
Charge time for the battery: 5 hours (0-100%)

Approvals/Accreditations

CE & UKCA Mark

Includes

36V lithium ion battery with 1 year warranty & anti-theft key: charges your Evac+Power 1000H and the anti-theft key enables the battery to be securely locked in place
Battery charger: charges your Evac+Power 1000H

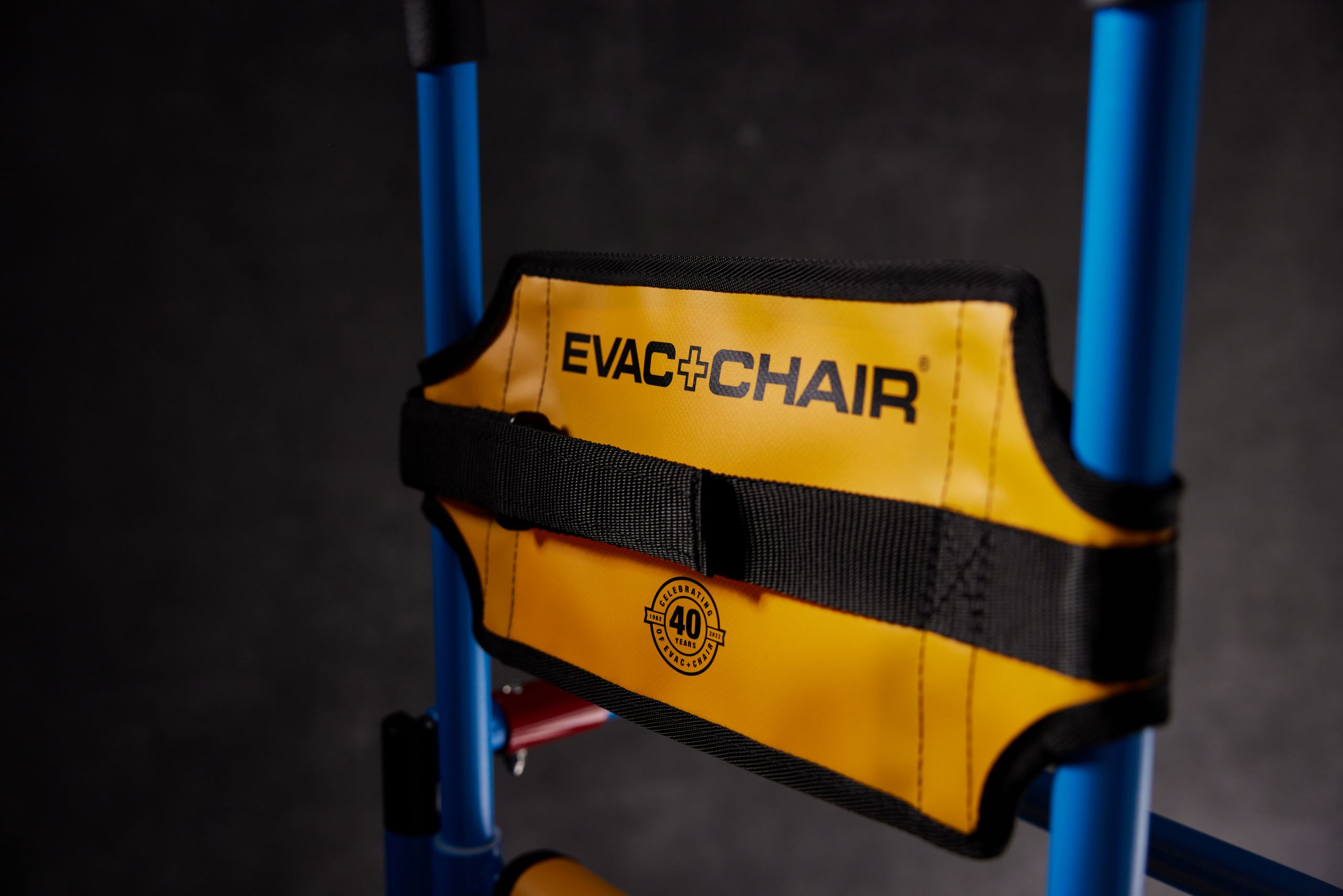

Additional safety harness & foot strap: provides enhanced safety for the passenger, if required
Dust cover: protects and preserves your Evac+Power 1000H

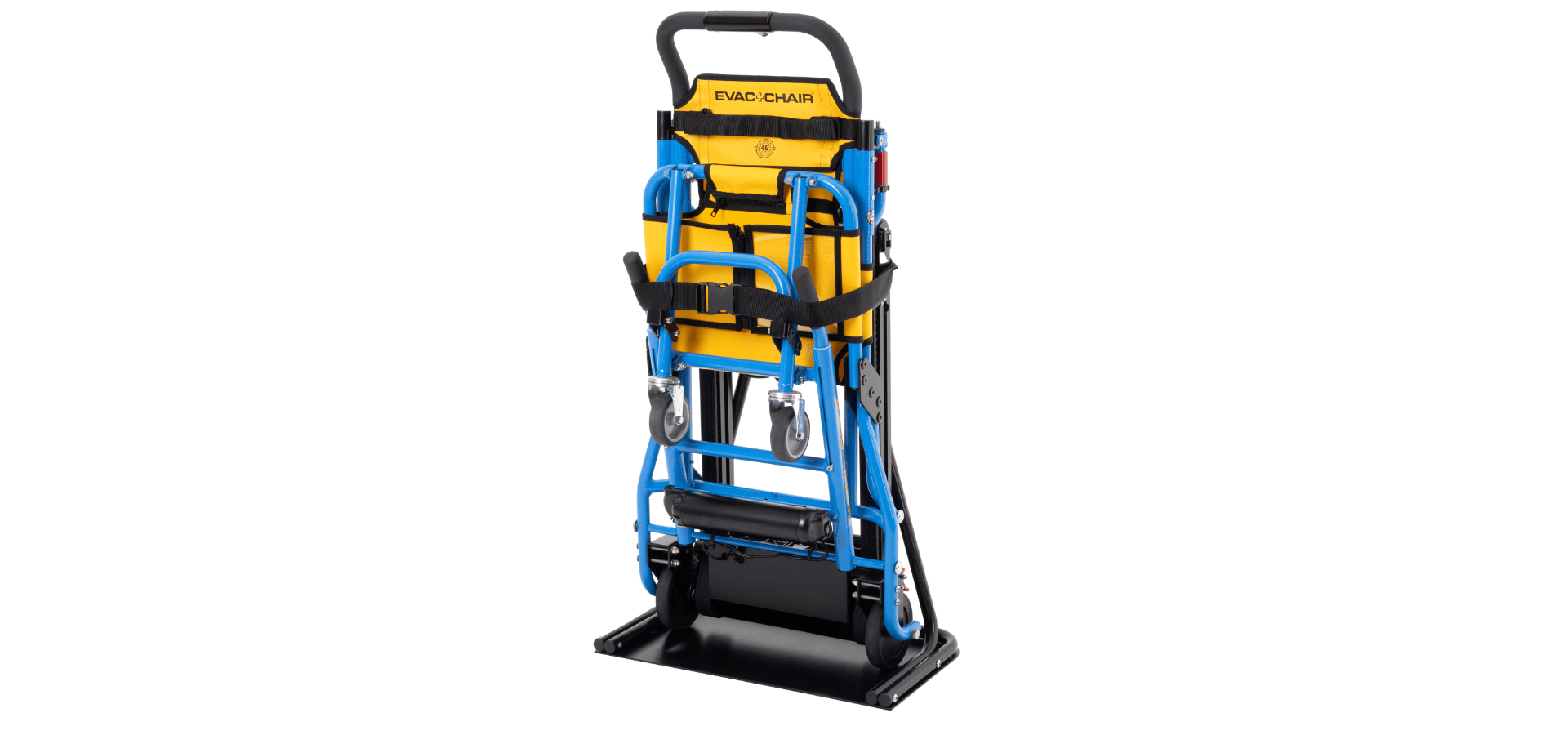

Wall bracket: store your Evac+Power 1000H in an easily accessible location for convenient access
Quick start guide & user guide: provides step-by-step user instructions and how to care and maintain your Evac+Power 1000H
Photoluminescent signage – position near your Evac+Power 1000H, for optimal visibility in all lighting conditions

Book A Complimentary Evacuation Assessment

Ensuring you have the correct Evac+Chair for your building and personnel is essential, especially with a wide range of options available. Whether your building has multiple staircases or unique features, we’re here to help you find the perfect fit.

With over 16 million disabled people in the UK – more than 4.8 million of whom are in employment – every workplace and public space must be equipped to support the safe evacuation of all individuals.

To support our customers, we offer complimentary evacuation assessments conducted by our nationwide team of specialists. These experts assess the specific needs of employees, existing PEEPs (Personal Emergency Evacuation Plans), review GEEPS (General Emergency Evacuation Plans), building requirements and stair configuration – all of which help determine the most suitable Evac+Chair model for your needs.

Booking your evacuation assessment is simple. Just contact us by clicking the button below, calling us on +44 (0) 121 706 7644 or email enquiries@evacchair.co.uk and one of our friendly team members will reach out to arrange a convenient time.

Alternatively, you can use our online Evac Xpert™ to easily identify the model that best suits your needs. Where multiple staircases exist within your organisation, we strongly recommend a complimentary Evacuation Assessment to guarantee the right Evac+Chair at every stairwell – ensuring maximum safety, swift evacuation and peace of mind for your entire organisation.
